ADJ NOVASTAR VX4S LED CONTROLLER
The NOVASTAR VX4S is a professional and user friendly LED display controller and a powerful front end processor that supports multiple signal formats.
Περιγραφη
The NOVASTAR VX4S is a professional and user friendly LED display controller and a powerful front end processor that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / SDI, and up to 1920 x 1200p @60Hz input resolution, includes (4) RJ45 outputs for up to 2.6 million pixels of LED control, and supports Nova’s new generation point-by-point correction technology. NOVASTAR VX4S is compatible with the ADJ AV6, AV6X and AV3 video panels.
ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ:
User Friendly LED Display Controller
Powerful Front End Processor
Up to 1920 x 1200 p @60Hz Input Resolution
Multiple Video Signal Format Support
New Generation Point-By-Point Correction Technology
Cascade Multiple Units Together Via USB
Rack Mountable Aluminum Enclosure (screws not included)

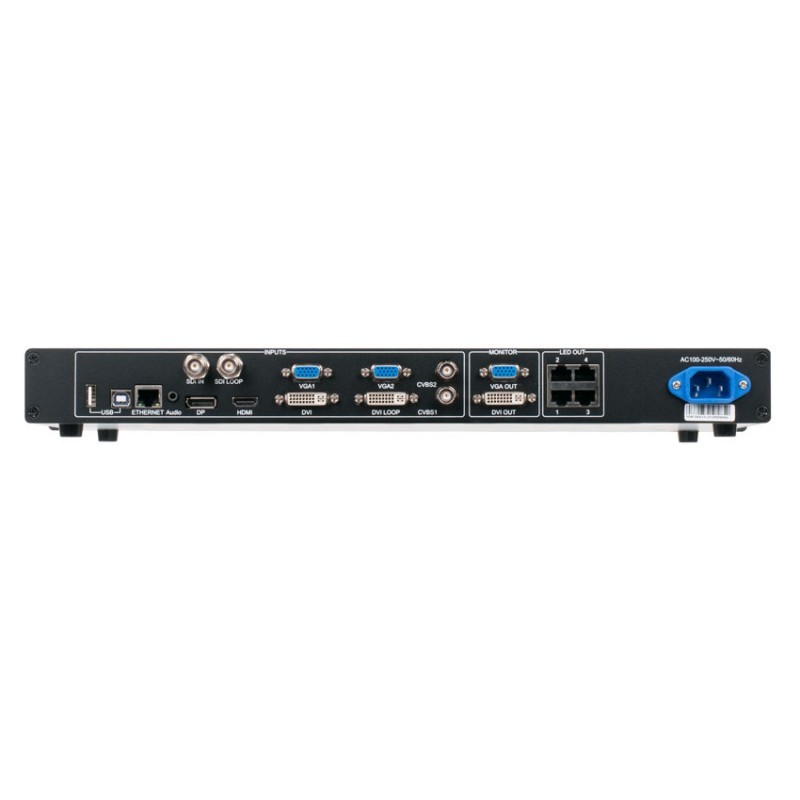

CONTROL / CONNECTIONS:
(1) RJ45 LAN for IP Based Control
(4) RJ45 Outputs for up to 2.6 million Pixels of LED Control
(2) USB Type A and (2) USB Type B Ports (1 set on each side)
(1) 1/8 inch (3.5mm) Audio Input
Video Input: (1) DP / (1) HDMI / (2) VGA / (1) DVI / (2) CVBS / (1) SDI
Video Output: (1) DVI Loop / (1) DVI / (1) VGA / (1) SDI Loop
Locking IEC Power Input
ΜΕΓΕΘΟΣ / ΒΑΡΟΣ:
Length: 19.0” (483mm)
Width: 10.8” (275mm)
Height: 1.8” (45mm)
Weight: 5.6 lbs. (2.55 kg)
ELECTRICAL:
AC 100-240V – 50/60Hz – 0.65A
Max Power Consumption: 16W
INCLUDED CABLES (1 each):
DP, VGA, USB, HDMI, DVI, CAT5, Power
