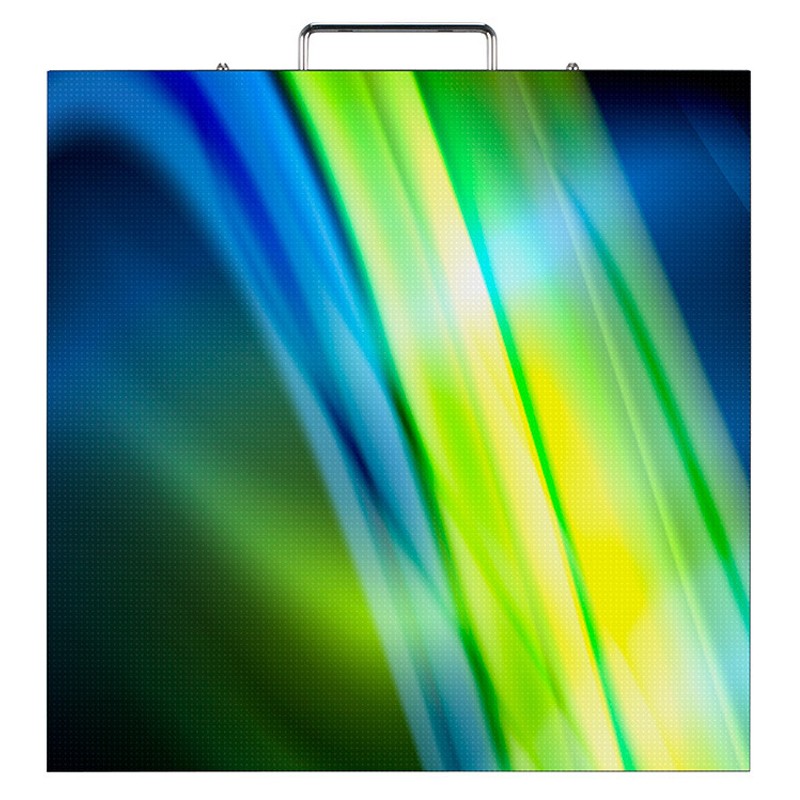

ADJ VS3 VIDEO PANEL
The VS3 is a high-resolution video panel with a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel.
Περιγραφη
ΠΡΟΔΙΑΓΡΑΦΕΣ:
• Pixel Pitch: 3.91mm (0.15”)
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 128×128; 65536 per square meter
• Size :19.68” x 19.68” x 2.75” / 500 x 500 x 69.6mm
• Module Quantity: 4
• Weight: 17 lbs. / 7.7kg.
ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ:
• Corner Protectors to protect the corners of the VS3 during transport, set-up and teardown

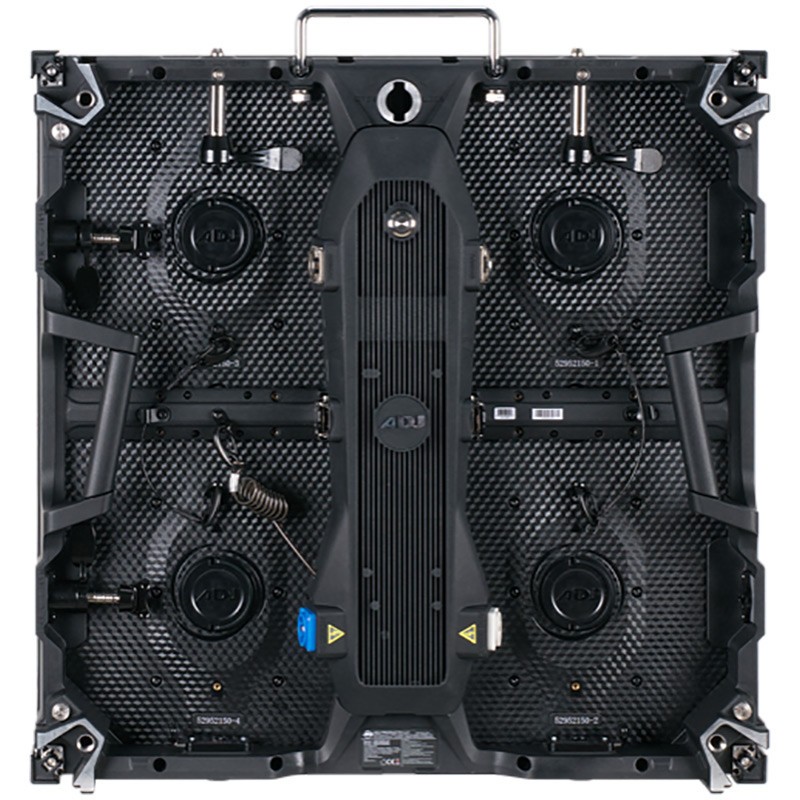

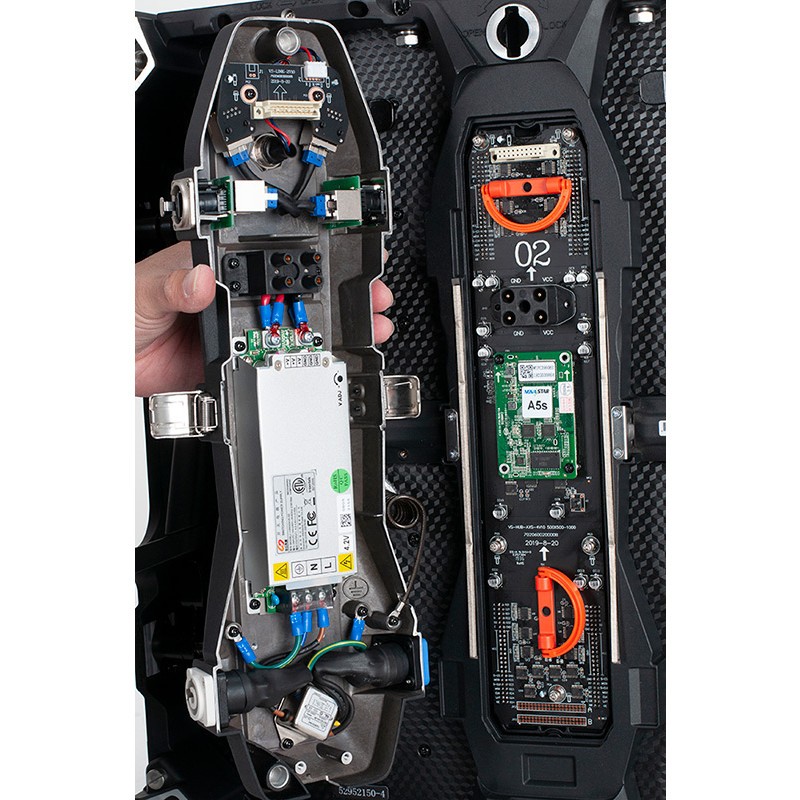

• Front and rear serviceable: 4 easy to replace video modules on each panel
MECHANICAL RATINGS:
• Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS:
• Brightness: 1000 NITS
• View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
• Gray Scale: ?14-bit
• Display Color: 256
• Brightness Adjustment: 0~100% 100 Levels
• Contrast ratio: 5000:1
• Processing: 14-bit
POWER SUPPLY:
• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 170W/per panel
• Ave. Power Consumption: 68W/per panel
• Connections Power/Data: Power – Locking Power In/Out; Data – Locking RJ45 In/Out
CONTROL SYSTEM:
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-75Hz
• Scan Mode: 1/16
• Refresh Rate: 3840Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <120m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet
ENVIRONMENTAL:
• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
ΠΡΟΑΙΡΕΤΙΚΑ ΑΞΕΣΟΥΑΡ:
• VSFC8 : Flight Case – Fits 8 VS Series Video Panels
• VSRB1 : Rigging Bar – Hang up to 20 VS Series Video Panels vertically

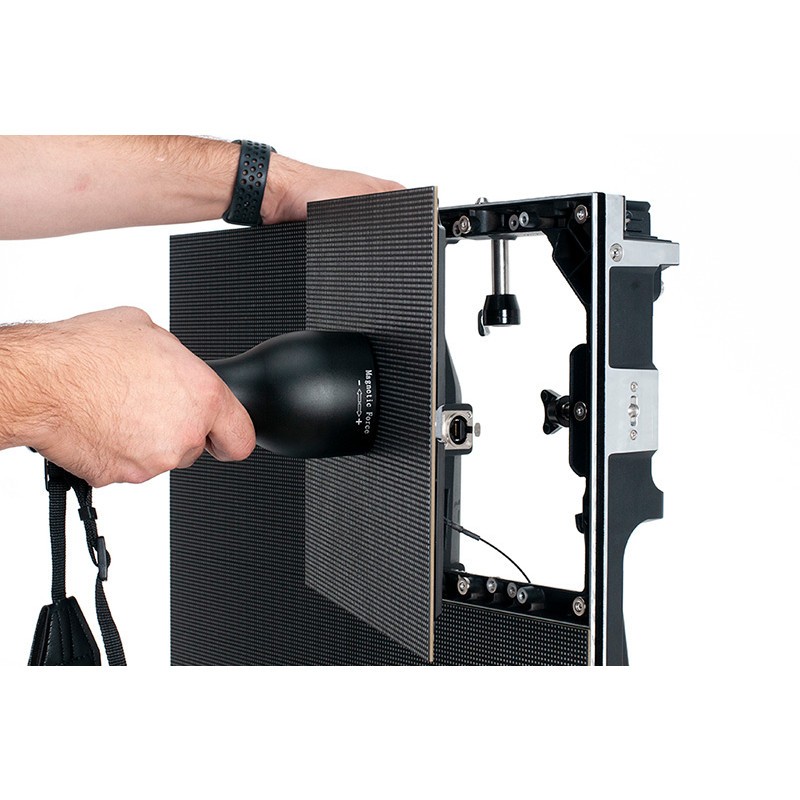

• VSMRT : Module Removal tool – Magnetically assists the tech in removing modules from the front side when servicing.
• VSRQR : Quick Rig – Attaches and locks on to the rear of any Vision series panel so it can be fastened to a 50mm pipe or truss
• Novastar VX4S: Video Processor
• Novastar MCTRL-300: Video Processor
ΚΑΛΩΔΙΑ:
• Cabinet to Cabinet Data Link Cables (CAT6 Series)
• Locking Power Link Cables (PLC Series)
• Locking Power Main Power Cables (MPC Series)
