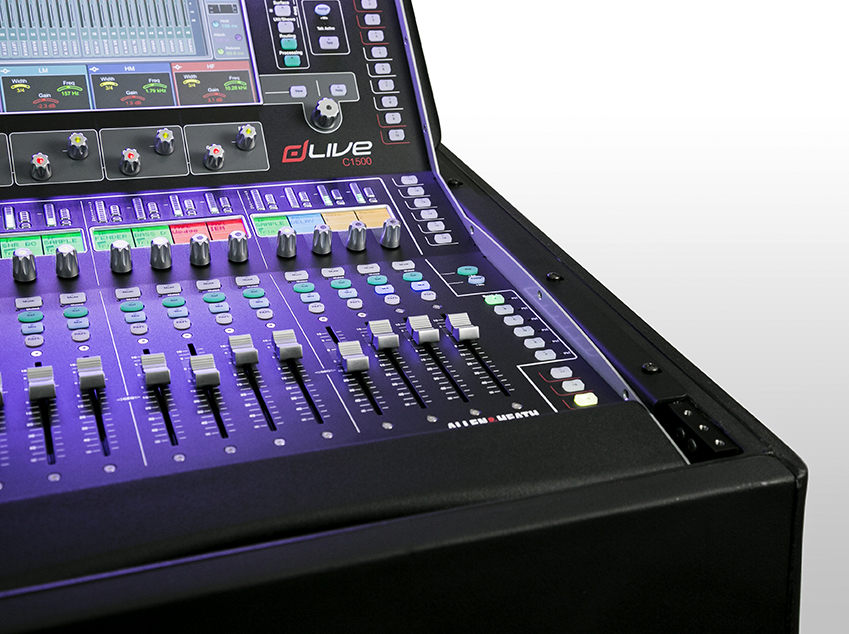

ALLEN & HEATH DLIVE C1500

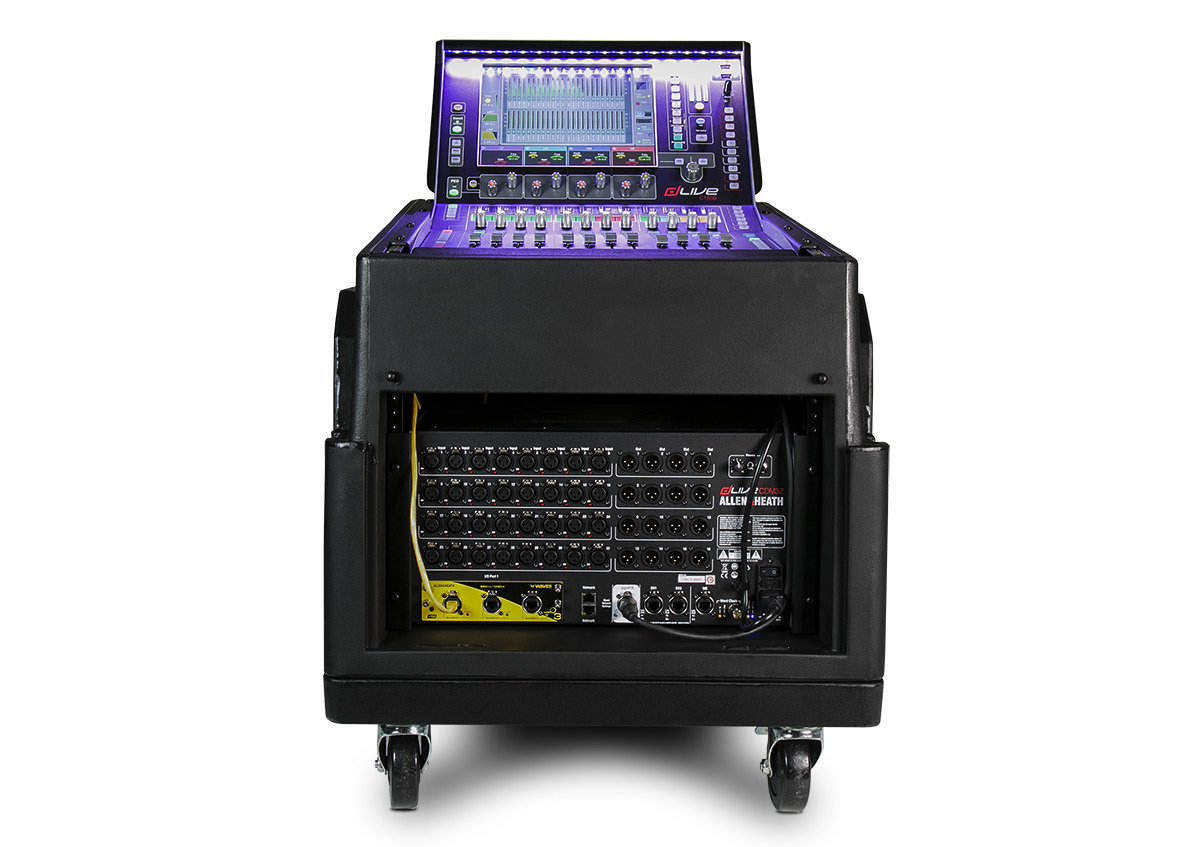

The C1500 is the first rack-mountable control Surface for the dLive MixRack. Packed in a tiny footprint are 12 faders over 6 layers, built-in audio I/O, an audio networking port, a 12″ capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry.
Περιγραφη
Features
12 faders
Fully assignable layout – 72 fader strips
Harmony UI integrates screen and wrap-around controls
12” capacitive touchscreen
Gesture control – pinch, swipe, drag ‘n drop
Dedicated multi-mode EQ view
Configurable widget areas for Scenes, meters, FX and more
19 assignable SoftKeys
Engineer’s Wedge and IEM fader strips
Comprehensive multipoint metering
Daylight visibility
USB stereo recording and playback
6 XLR mic/line in, 6 XLR line out
1 digital st AES3 in, 1 digital st AES3 out
Connection hub
GigaACE gigabit link to MixRack
DX link for I/O expansion
I/O Port – 128 ch 96 kHz
2x Network ports
Wordclock BNC I/O
Video output
