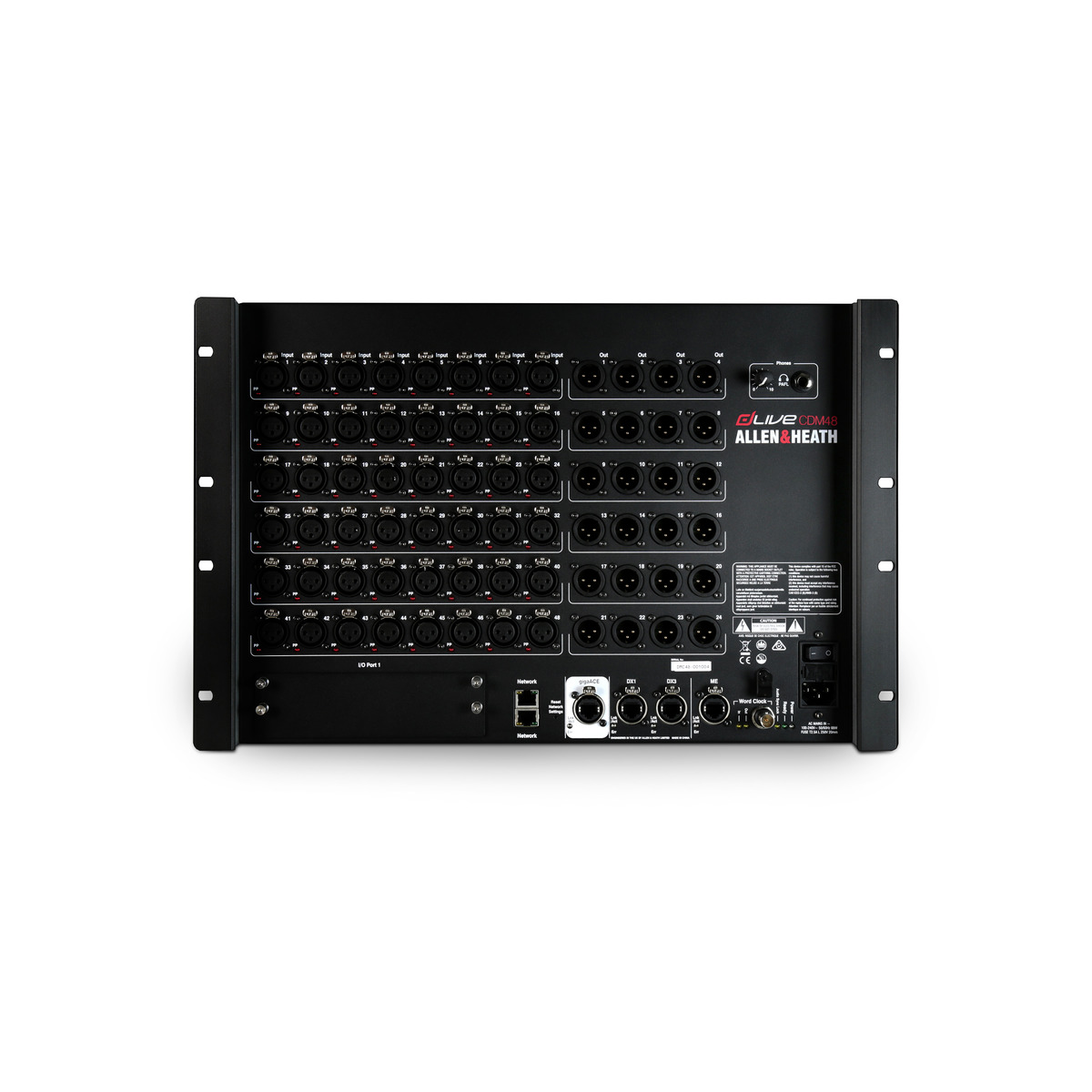

ALLEN & HEATH DLIVE CDM48
48 mic/line inputs, 24 line outputs
Περιγραφη
48 mic/line inputs, 24 line outputs
XCVI 160×64 FPGA core
– 96kHz sample rate
– Variable bit-depth for ultimate precision and noise performance
– Virtually infinite mix headroom thanks to 96bit accumulator
– Class leading, ultra-low latency at 0.7ms
128 Input Channels with full processing
64 Mix Outputs with full processing
Configurable 64 bus architecture (group, FX, aux, matrix, mains)
– LR, LCR and up to 5.1 mains mode
– Multiple PFLs
16 RackExtra FX with dedicated stereo returns
24 DCAs
AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
Built-in signal generator and RTA
New preamp design for extra transparency
Unique Active PAD circuit for consistent performance with any source.
Connection hub
– gigaACE gigabit link to Surface
– 2x DX links for I/O expansion
– I/O Port – 128 ch 96 kHz
– Dedicated ME-1 48kHz port
– 2x Network ports
– Wordclock BNC I/O
Add up to 22 DX I/O expanders via DX Hub modules or DX Link cards

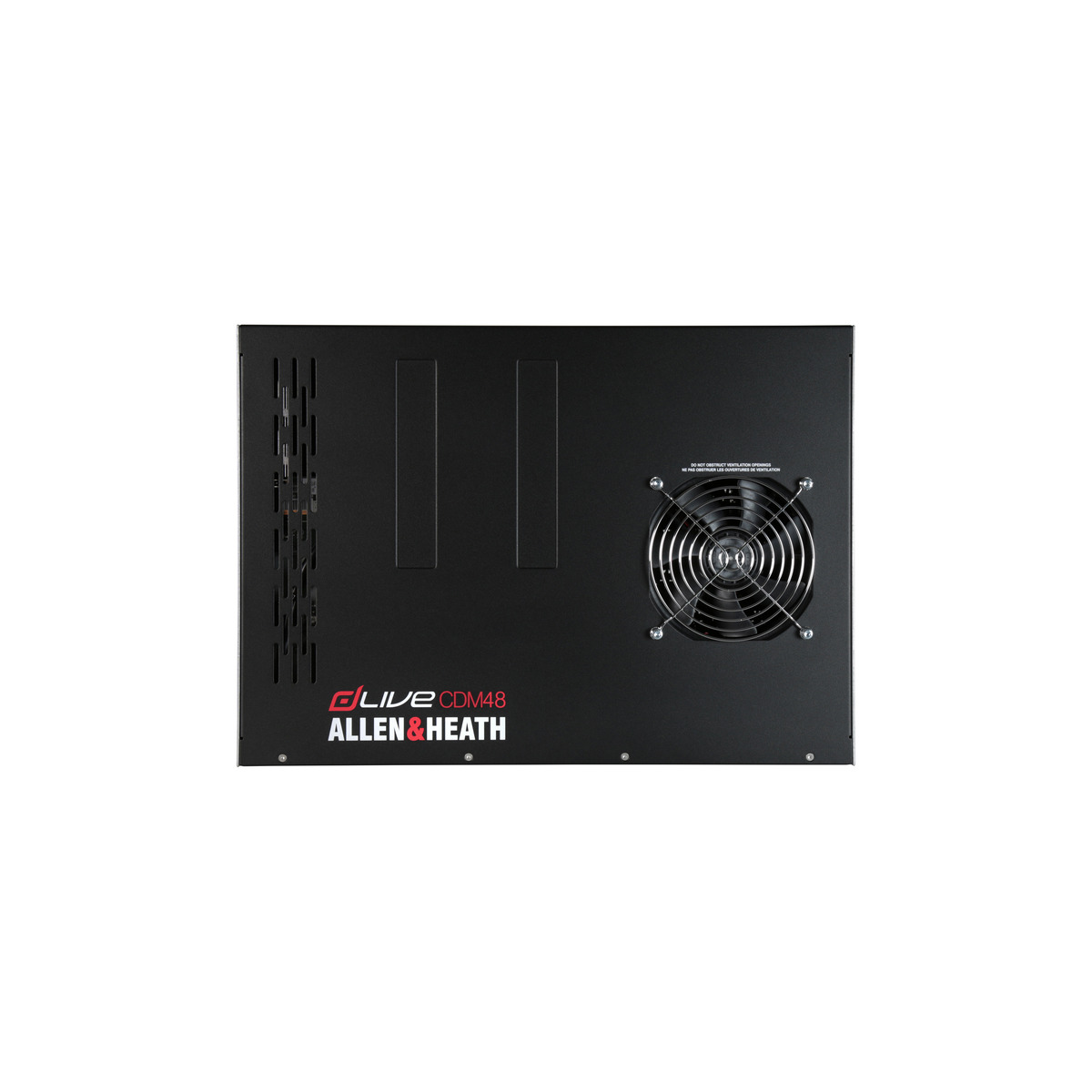

Flush front panel with ultra quiet fan
Reversible rack ears design
