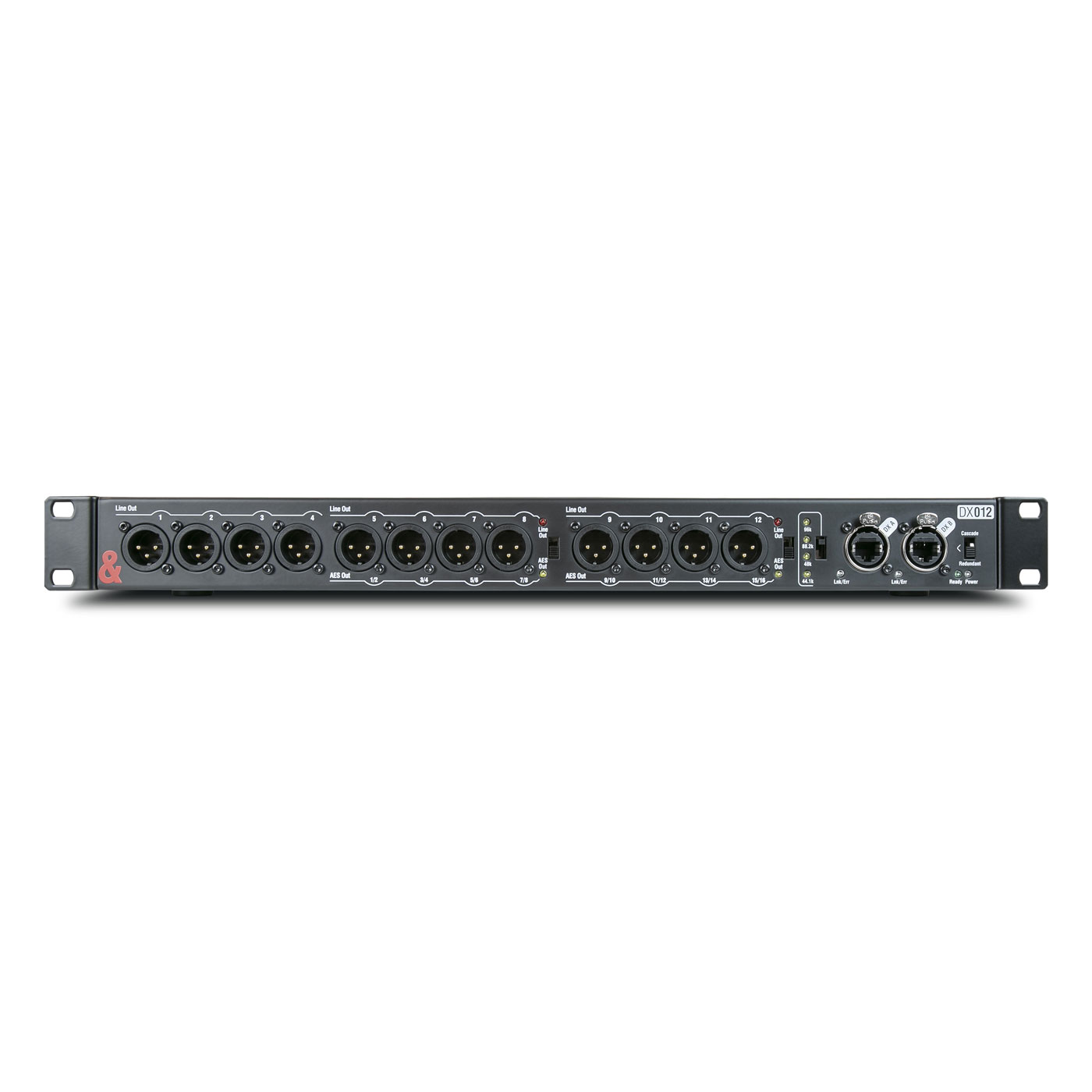

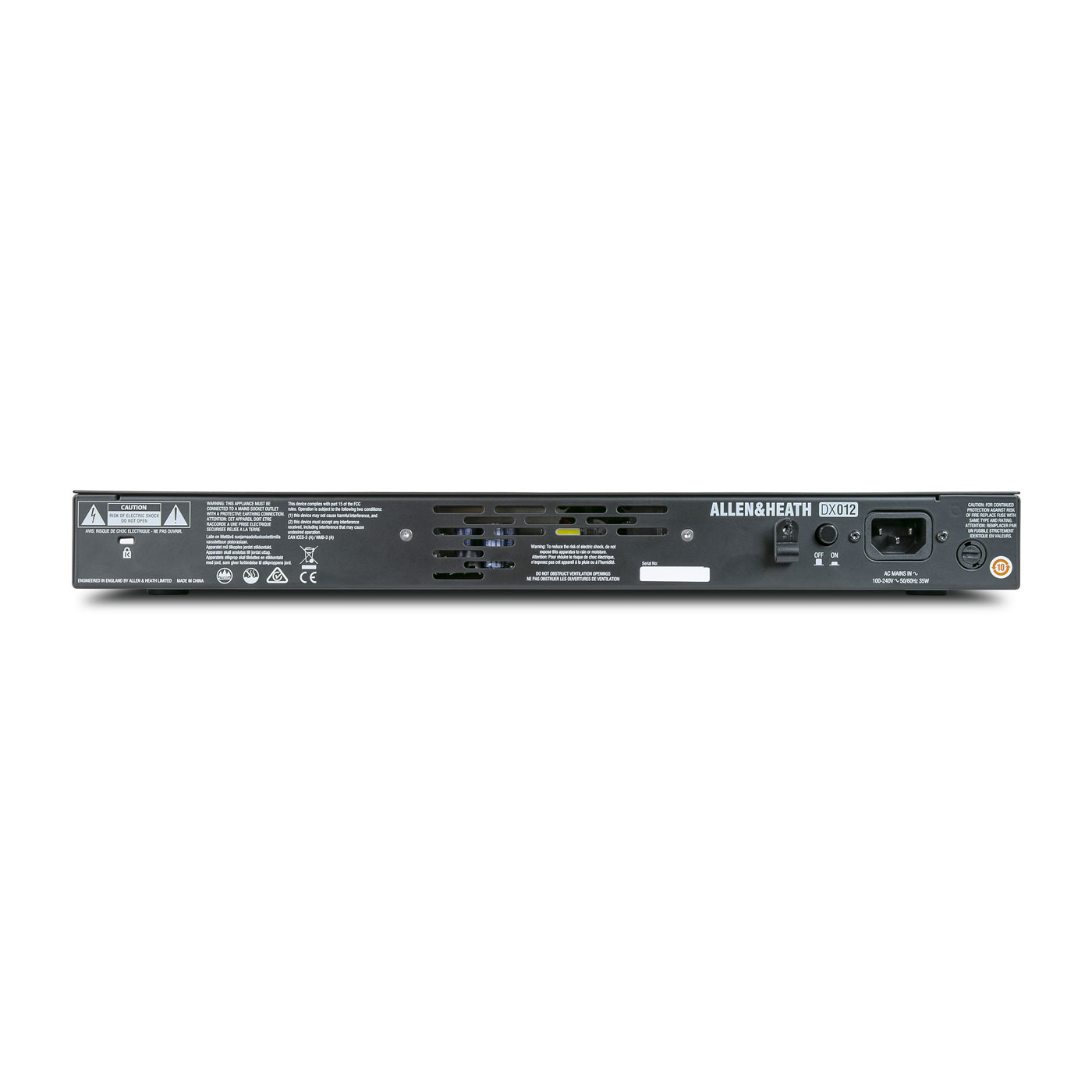

ALLEN & HEATH DX012
Allen & Heath DX012 μονάδα επέκτασης με 12 XLR Outputs / AES Portable DX Expander. H DX012 παρέχει απομακρυσμένη επέκταση εξόδου για τις κονσόλες SQ, Avantis και dLive.
Περιγραφη
Συμβατό με τις κονσόλες SQ, Avantis και dLive
12 XLR Outputs:
– 1-4 Analogue Line Out
– 5-8 Analogue Line out or AES Digital out (switchable)
– 9-12 Analogue Line out or AES Digital out (switchable)
AES outputs globally switchable between:
– 44.1kHz
– 48kHz
– 88.2kHz
– 96kHz
Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port
Redundant DX connection to compatible hardware
Multiple DX012 can be added to a system:
– Up to 16 DX012 units can be added to a SQ system
– Up to 16 DX012 units can be added to an Avantis system
– Up to 46 DX012 units can be added to a dLive S Class system
– Up to 22 DX012 units can be added to a dLive C Class system
Rack-mounted (1u) or shelf/floor operation
Plug and Play – δεν απαιτείται IP addressing
Συμβατό με καλώδια CAT5e (ή higher) έως 100m
Locking EtherCon ports
