EVOX 8 ACTIVE TWO-WAY ARRAY

Περιγραφη

POWERFUL CLASS D AMPLIFIER
RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. EVOX amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

SUPERIOR TRANSDUCERS

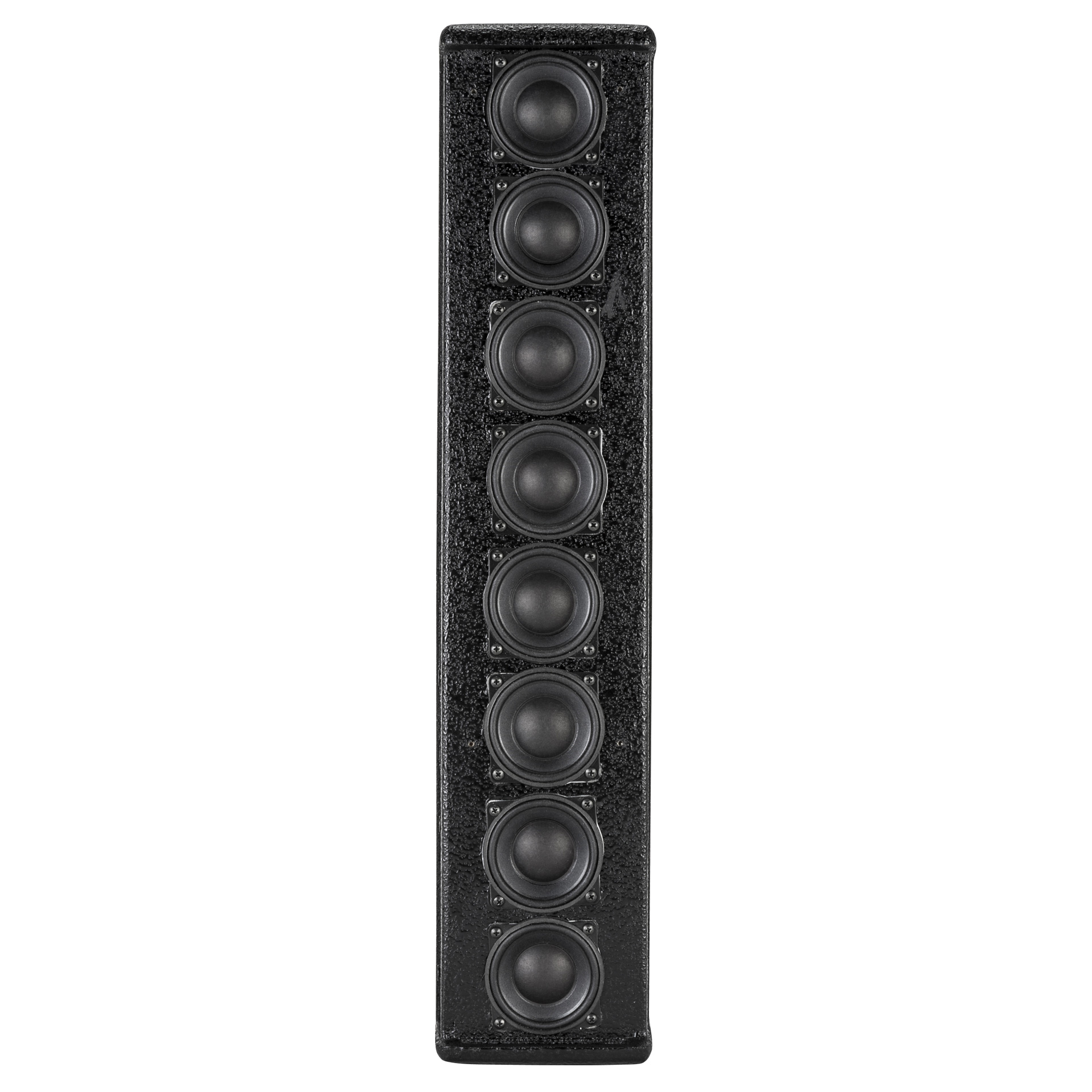

HIGH FREQUENCIES – The ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance.

LOW FREQUENCIES The high excursion RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

READY TO PLAY IN A FEW SIMPLE STEPS

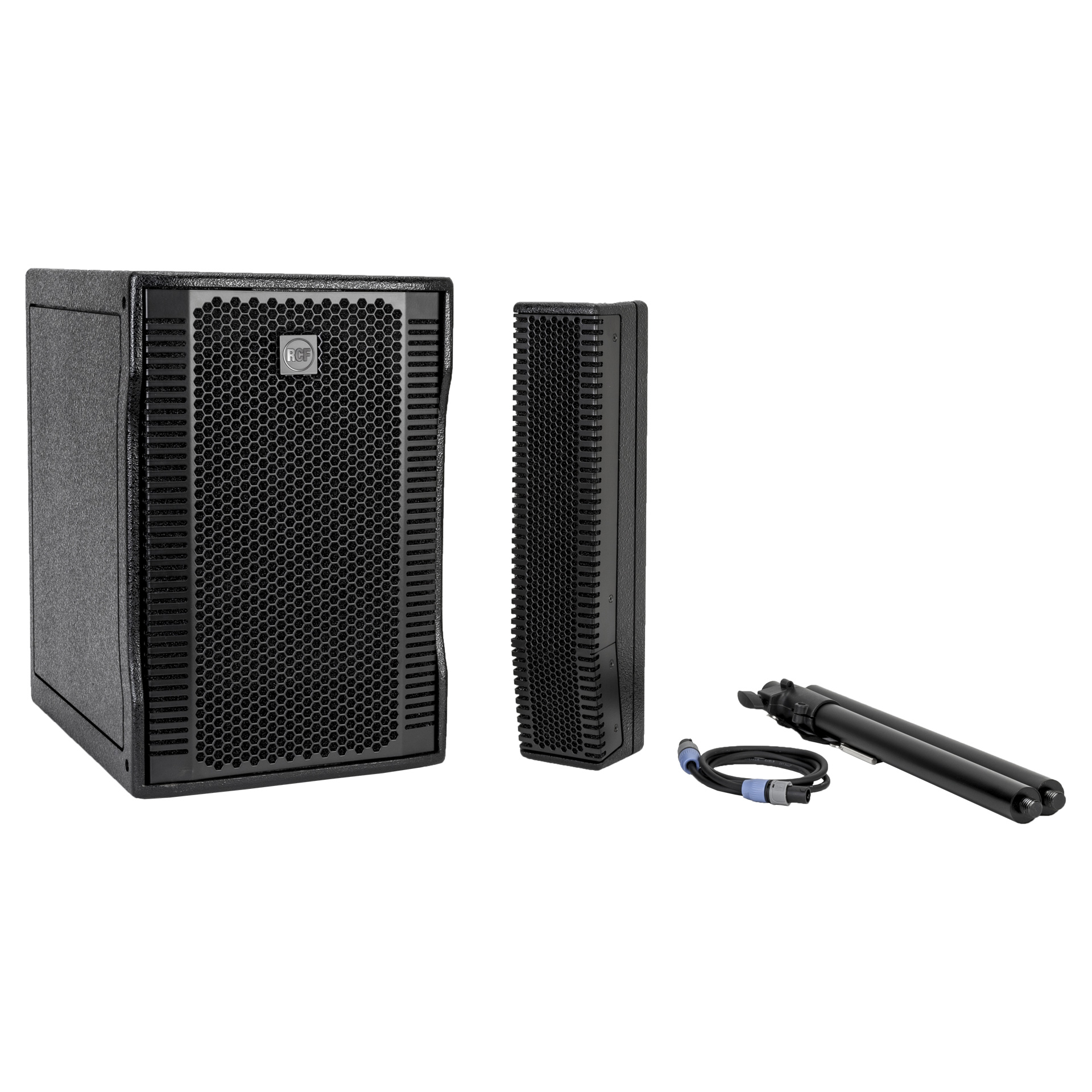

PORTABILITY During transportation, the top column is located in a special socket in the back side of the Sub. A specifically designed rail on the sub will guide you during the insertion and extraction of the top column.

MOUNTINGThe top column will be inserted on the pole mount, which can be easily screwed on the Sub top side and the pole mount can be separated in two single parts in order to place it on the transportation bag.

PLAY!Carrying and mounting your audio system has never been so quick!

SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz

MAX SPL @ 1M:
128 dB

HORIZONTAL COVERAGE ANGLE:
120°

VERTICAL COVERAGE ANGLE:
30°
Transducers
FULLRANGE:
8 x 2.0”, 1.0” v.c

WOOFER:
12”, 2.5” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
220 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, EQ, phase, Xover
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HARDWARE:
2 x M6

HANDLES:
1 Top

POLE MOUNT/CAP:
Yes

COLOR:
Black
Size
HEIGHT:
530 mm / 20.87 inches

WIDTH:
346 mm / 13.62 inches

DEPTH:
459 mm / 18.07 inches

WEIGHT:
23.8 kg / 52.47 lbs
Shipping informations
PACKAGE HEIGHT:
580 mm / 22.83 inches

PACKAGE WIDTH:
400 mm / 15.75 inches

PACKAGE DEPTH:
570 mm / 22.44 inches

PACKAGE WEIGHT:
27.7 kg / 61.07 lbs
