FOS KB3.9 OUTDOOR ( FIXED INSTALLATIONS )
Outdoor Led Screen IP 65 for fixed installations , 3 in 1 nationstar SMD1921 (white lamps with copper wire), pixel pitch 3.9 mm , panel size 50 x 50 cm, 6kg , Brightness: 4500cd/?, Resolution of module: 64 x 64 , cabinet resolution128x128 , Gray scale 16bits . Refresh Freq 2400 Hz , Nova star Input card inluded .
Περιγραφη
Technical Specifications

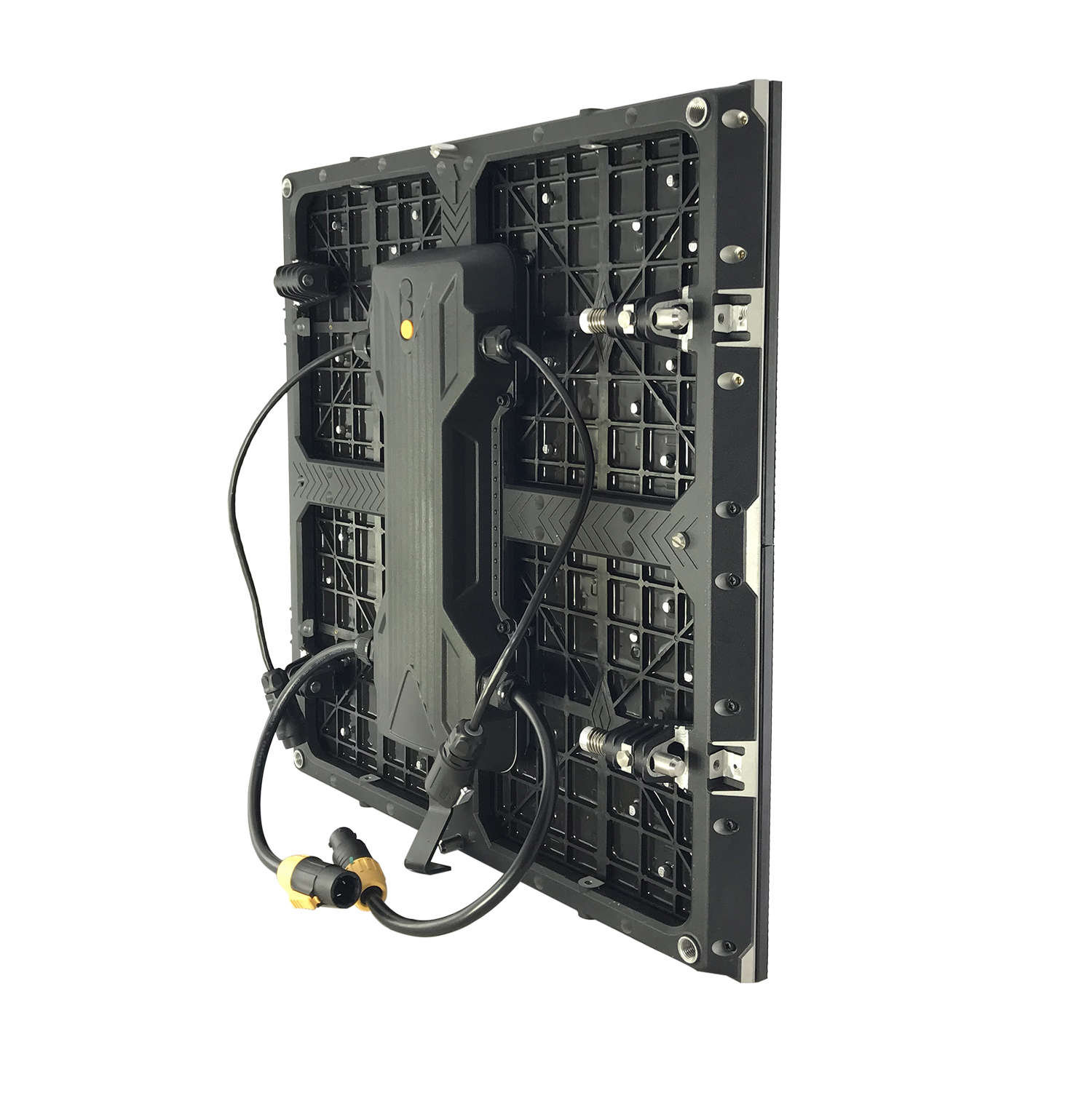

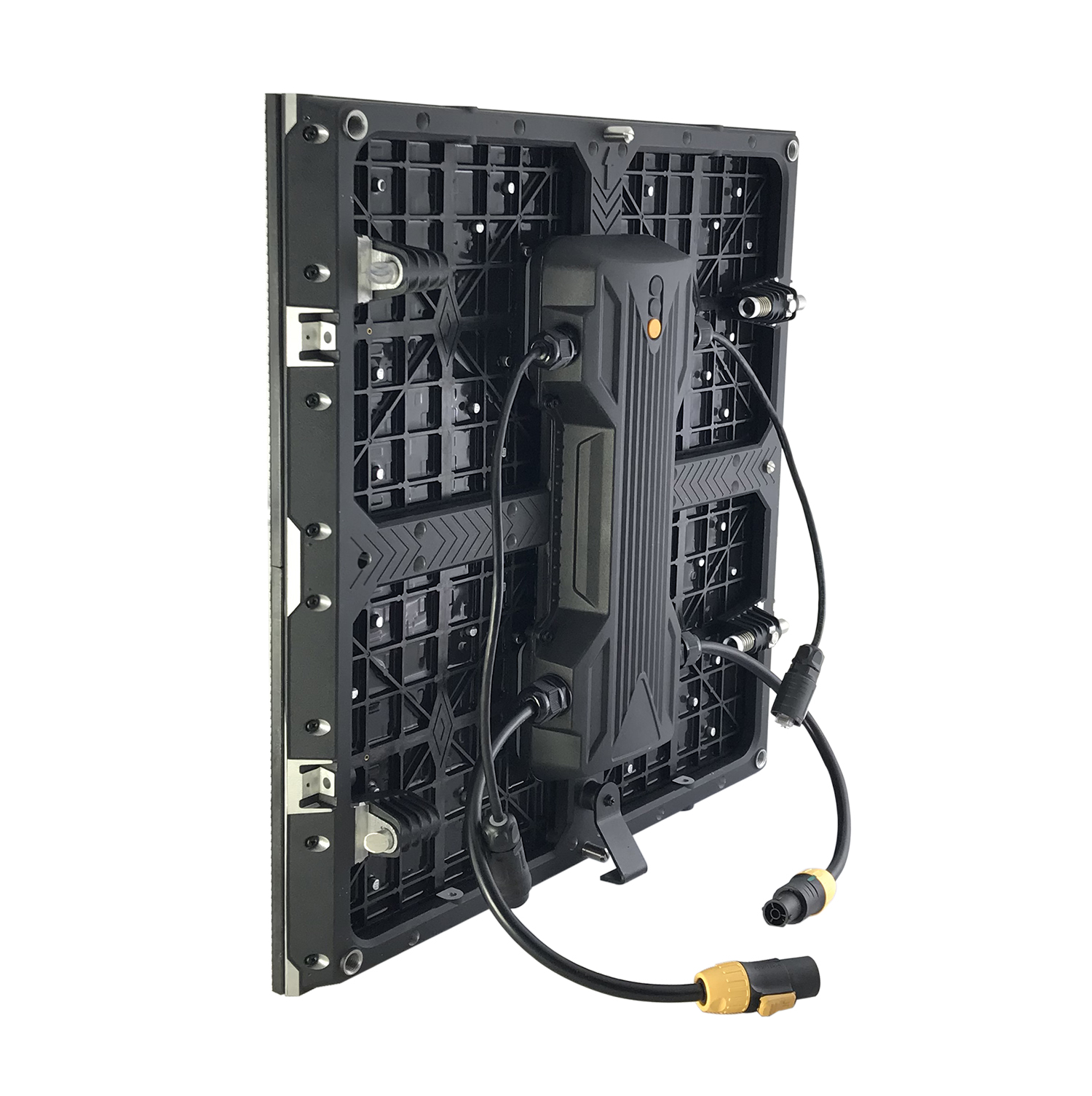

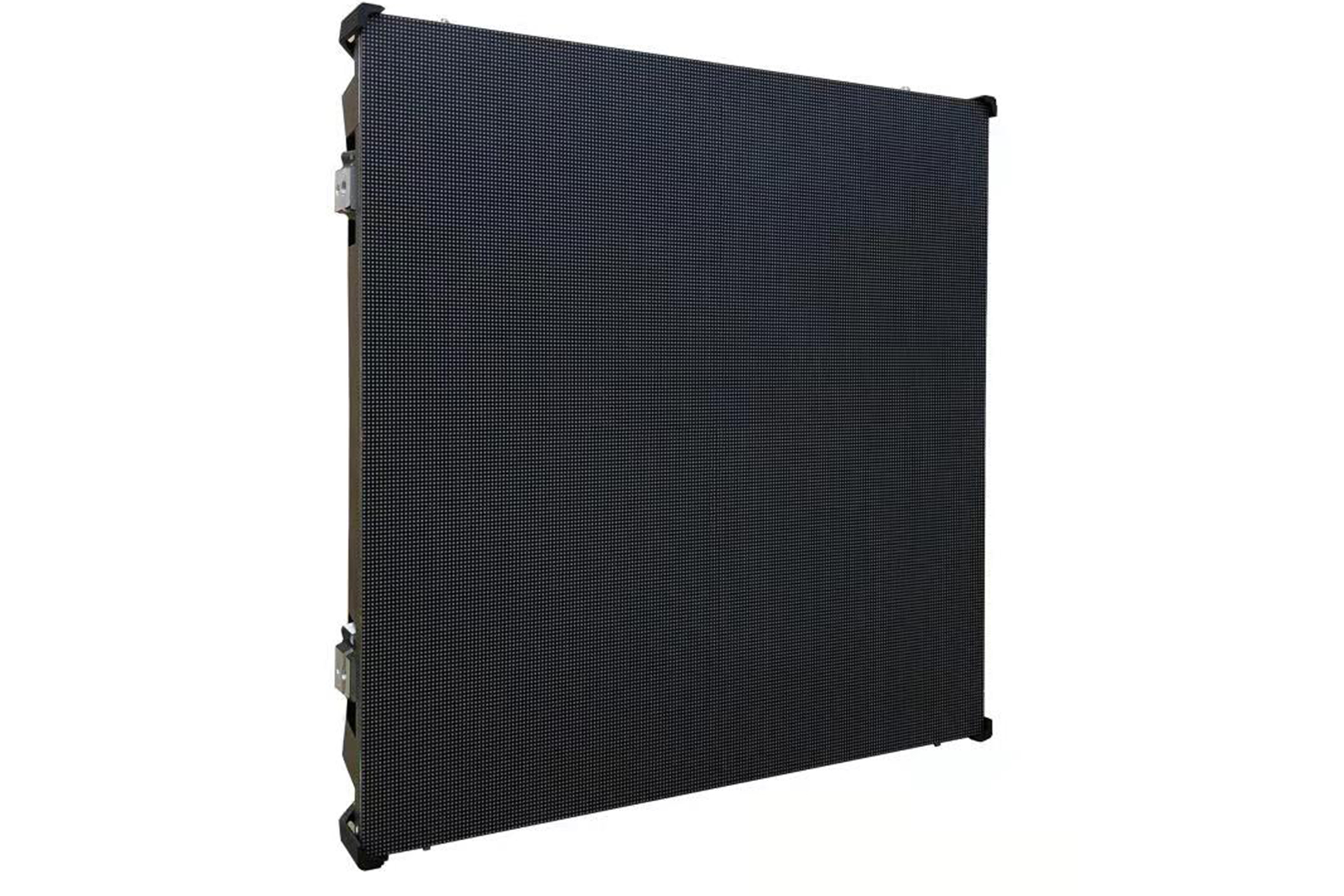

Fixed Installations Display Panel
LED Type: SMD1921
Pixel Pitch: 3,9 mm
Pixel Configuration: 3 in 1 nationstar
Module size: 250 x 250 mm
Module resolution: 64 x 64
Density: 65536 dots / m2
Cabinet material: Aluminium
Maximum power consumption: 850W/ m2
Gray scale: 14 bits
Colors: 16,7 M
Driving method: 1/9 Scanning
Refresh Frequency: 3000 Hz.
Frame frequency: 60 Hz
Brightness: 4500 cd/m2
Panel size: 500 x 500 x 7.2mm
Panel weight: 6 Kg.
Power Supply: 220 / 110 Volt AC +/- 10%
IP65
