Syva is suited to a wide range of applications including auditoriums, home cinemas, trade shows, corporate events, arts centres, theatres, lounge bars, fashion shows and places of worship.

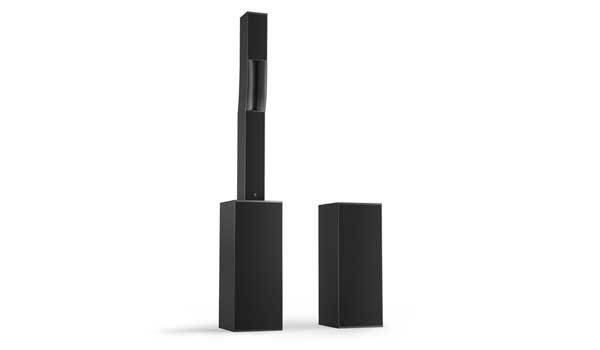

Syva features six 5″ MF speakers providing usable bandwidth to 87 Hz and three 1.75″ HF diaphragm compression drivers, loaded by DOSC waveguides in a J-shaped progressive curvature. This transducer arrangement produces an H/V 140° x 26° (+5/-21°) directivity pattern, optimised for ultra-wide horizontal coverage with extended throw capability.
Its companion Syva Low enclosure features two K2 12” drivers designed to provide low frequency contour and extended bandwidth down to 40 Hz. Syva Sub features one high-excursion 12” driver equipped with a KS28 woofer motor to further extend the bandwidth of the system in the sub frequency domain down to 27 Hz.
Syva can be wall- or pole-mounted, as well as flown, or used alone with its baseplate. Alternatively, Syva can be rapidly mounted on top of Syva Low or Syva Sub using the AutoConnect plug-and-play audio and physical link.
L-Acoustics amplified controllers ensure advanced crossover functions, time alignment, linearisation and L-Drive protection of the transducers.
L-Acoustics Syva Key Features
L-Acoustics line source heritage
142 dB max SPL down to 35 Hz
35 m throw capability
Exceptional coverage capability
Streamlined design
Plug-and-play package
SUB

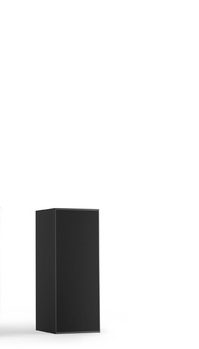

The Syva Sub enclosure features one high excursion 12” driver equipped with a KS28 woofer motor and is designed to further extend the bandwidth of the system in the sub frequency domain down to 27 Hz.
The Syva system is designed to work in a wide range of sound reinforcement applications including theatres, places of workshop, bars and corporate events.
